Things You Didn’t Know About SemiConductors
Source:https://unsplash.com/
Semiconductors are certainly familiar to you. They’re all over the place. However, while most people have heard of semiconductors, few are familiar with them.
Semiconductors are widely regarded as one of the most significant innovations in history. They are essential to our ability to communicate with one another, gather, store, and interpret data, and automate intelligently. Semiconductors, often known as microchips or integrated circuits (ICs), have revolutionized industries as diverse as entertainment, retail, medical, and agriculture.
Consider all of the electronic products you use: cell phones and headphones, fitness wearables, household appliances, laptops, and even autos and public transportation – all of which are constructed around little bits of technology. Do you want to learn more about these small but powerful bits of technology? We’ve compiled a list of fascinating facts about semiconductors that you probably didn’t know about. Read On!
What are Semiconductors?
Source:https://unsplash.com/
A semiconductor is a physical substance used in electrical technology and appliances to manage and control current flow. It either prevents or fully repels an electric current from passing freely.
A semiconductor is a material that sits between a conductor and an insulator and is used to make electronic chips, computing components, and devices. Silicon, germanium, and other purified elements are commonly used to make it.
Semiconductors are divided into two categories. When the conductivity is larger or there are a lot of free electrons, an N-type semiconductor is employed. When the inductance is larger and there are less free electrons, a P-type semiconductor is employed.
What to Note about Semiconductors
Source:https://unsplash.com/
1.They are Built on Semiconducting Materials
Source:https://www.pinterest.com/
These are materials with electrical conductivity between metals, which are good conductors, and insulators, which are poor conductors. Most importantly, the conductivity can be controlled through adding small amounts of other elements and impurities.
2.Manufacturing Process
Source:https://unsplash.com/

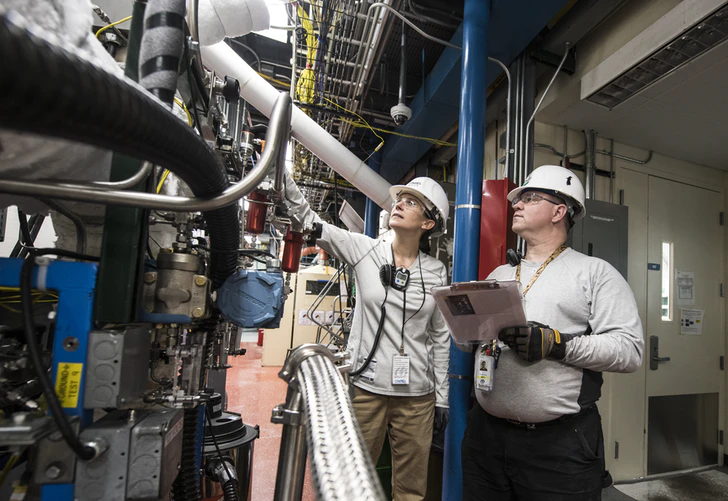

Semiconductors are created in fabs, which are specialized manufacturing facilities. They have cleanrooms, that are, fringed facilities within these fabrications are strict controls for airborne pollutants, humidity, and temperature. In manufacturing plants such as the plastic injection molding companies in Pennsylvania, they ensure that these processes are taken in stages as is necessary to produce the best.
Semiconductors are manufactured through three processes, the frontend process, the wafer test and the backend process.
3.They are Packaged into Chips
Source:https://unsplash.com/

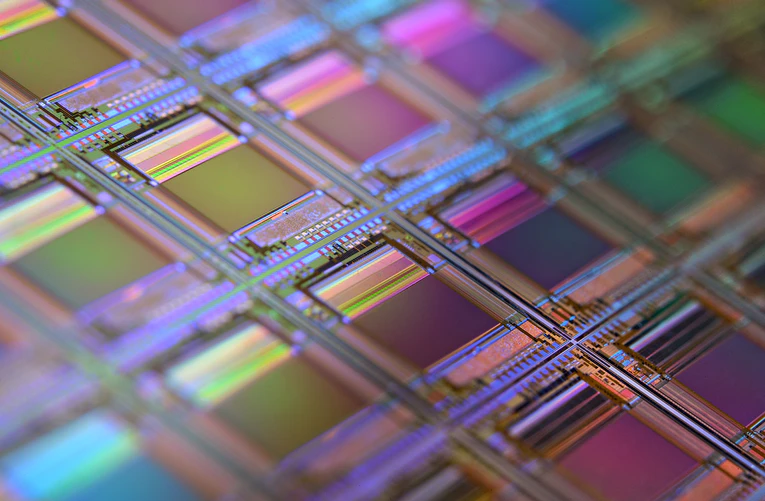

Chips are intricate structures made up of millions, if not billions, of transistors and other elements, as well as layers of circuitry that connect them. Chips have become more powerful as a result of combining more microscopic components and putting them closer together.
4.They Have Silicon
Source:https://unsplash.com/
Almost all chips begin with slices of highly purified silicon ingots as the beginning substrate. These slices are known as wafers and are typically 300 mm in diameter, however, alternative sizes (such as 200 mm and 150 mm) are also utilized.
5.All the Stages are Well Thought Through
Source:https://unsplash.com/
The process of manufacturing semiconductors is quite meticulous. The wafer process, for instance, can take up to 500 stages, as layers of material are injected and withdrawn to generate desired patterns.
6.Their Classification
Source:https://unsplash.com/
Logic and memory are two popular chip classes. Microprocessors — the brains of your smartphone, laptop, and other devices – are logic chips that conduct operations. Data is stored in memory chips either briefly (as in DRAM) or for a longer period of time (like solid-state drives).
7.Their Usage Growth
Source:https://unsplash.com/
As technology has progressed, the number of elements employed in semiconductor production has increased substantially. The early semiconductor devices were built of germanium, but silicon swiftly overtook it. More elements are being tested nowadays, either as part of new compounds or for new uses.
8.Electronic Properties
Source:https://unsplash.com/
Single crystal semiconductor materials are those in which the atoms are organized in a three-dimensional periodic pattern. A simplified two-dimensional model of an intrinsic (pure) silicon crystal with negligible impurities is shown in Part A of the image. In the crystal, each silicon atom is surrounded by four of its closest neighbours.
Each atom contains four electrons in its outer orbit, which it shares with four other atoms. A covalent bond is formed when two electron pairs are shared. The two atoms are held together by the force of attraction between the electrons and both nuclei.
Only discontinuous energy levels are possible for solitary atoms (e.g., in gas rather than a crystal). When a significant number of atoms are gathered to form a crystal, however, the atoms’ interactions cause the discrete energy levels to spread out into energy bands.
The electrons in an insulator or semiconductor crystal will fill a number of energy bands when there is no thermal vibration (at low temperature), leaving the remainder of the energy bands unoccupied. The valence band is the highest filled band.
The Bottom Line
Semiconductors have had a huge influence on our culture. Semiconductors, like transistors, are at the heart of microprocessor chips. Semiconductors are used in everything that is digital or uses radio waves.
There is much you need to know about semiconductors. What we have covered in this article is helpful, but just the tip of the iceberg. Just as you have heard about “Silicon Valley” and “Silicon Economy”, for a good reason, Silicon is at the heart of all this. Always Learn!
